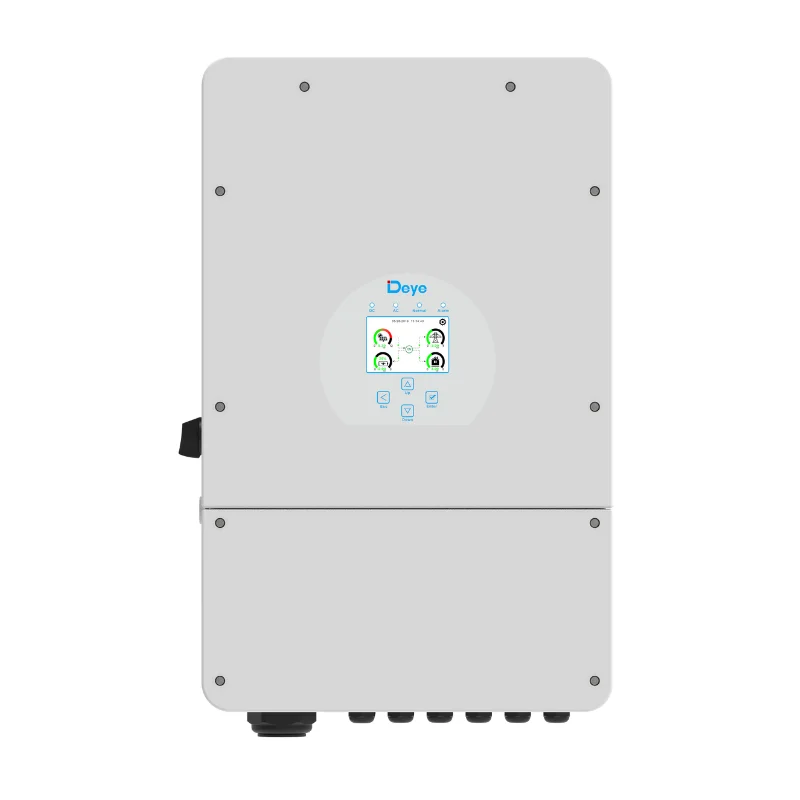

12kW On/Off Grid Hybrid Solar Inverter Single Phase 230VAC 10yrs Warranty

Product information

Wattage:

Max. PV Access Power (W) 24000;
Max. PV Input Power (W) 18000
Rated AC Input/Output Active Power (W) 12000

Current:

Max. Operating PV Input Current (A) 26+26+26;
Max. Input Short-Circuit Current (A) 44+44+44;
Rated AC Input/Output Current (A) 54.6/52.2;
Max. AC Input/Output Current (A) 54.6/52.2;

Voltage:

Max. PV Input Voltage: 500V;
MPPT Range: 150-425V;
Rated PV Input Voltage: 370V;
Start-up Voltage: 125V;

Frequency:

Rated Input/Output Grid Frequency/Range:
50/45-55, 60/55-65

Power Factor: 0.8 leading to 0.8 lagging

IP Rating: IP65

Working conditions: -40~60℃

Size: 420×670×233 mm

Order code: 12237

Product code: SUN-12K-SG02LP1-EU-AM3

Item Weight: 35.6 kg

Items per pack: 1

Release Date: 16.10.2024

Brand: Deye

Warranty: 10 years
