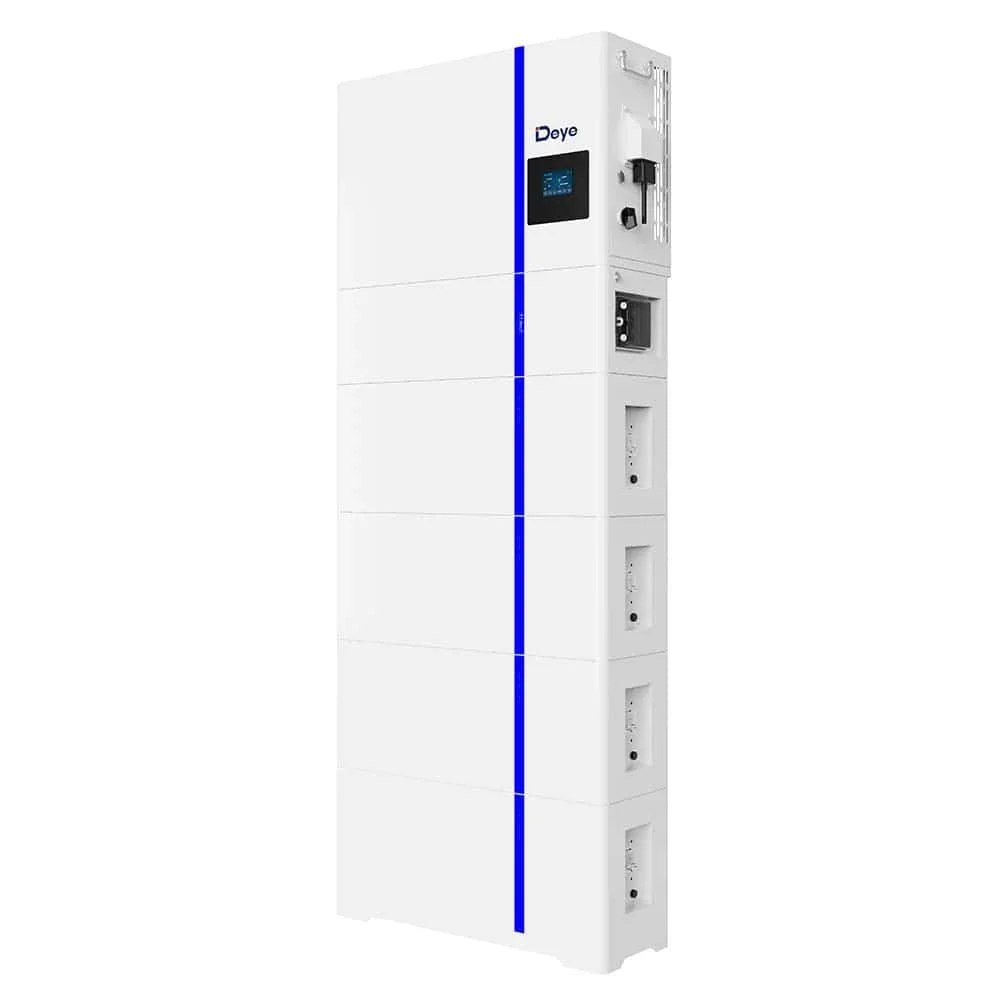

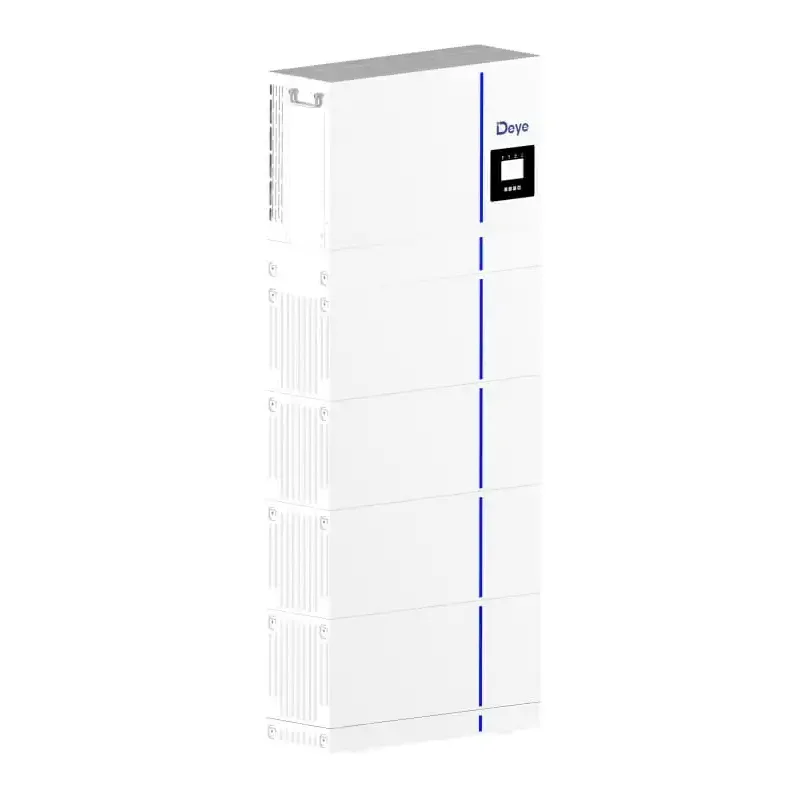

20.48kWh Low Voltage Storage System 12kW Hybrid Inverter Three Phase 380VAC

Product information

Current: Max. Charging/Discharging Current 240A

Wattage:

Nominal Output Power/UPS Power: 12kW;
Recommended Energy Configuration: 15kW (Min.);

Voltage: AC Output 3L/N/PE 220/380, 230/400Vac

Frequency: 50/60Hz

IP Rating: IP65 (after stacking)

Working conditions: ` -20 +55°C

Size:

Inverter: 720 x 255 x H440 mm;
Battery Module Dimension: 720*255*300(W x D x H, mm);
Battery Base Dimension: 720*255*68(W x D x H, mm);
Battery PDU3 Dimension: 720*255*228(W x D x H, mm);

Order code: 12234

Product code: AI-W5.1-12P3-EU-B

Items per pack: 1

Item Weight: 325 kg

Item Volume: 1.68

Items per box: 1

Certification: IEC62619, IEC60730, CE, VDE2510-50, CEI 0-21

Release Date: 16.10.2024

Brand: Deye

Warranty: Battery 10 years, Inverter 5 years
