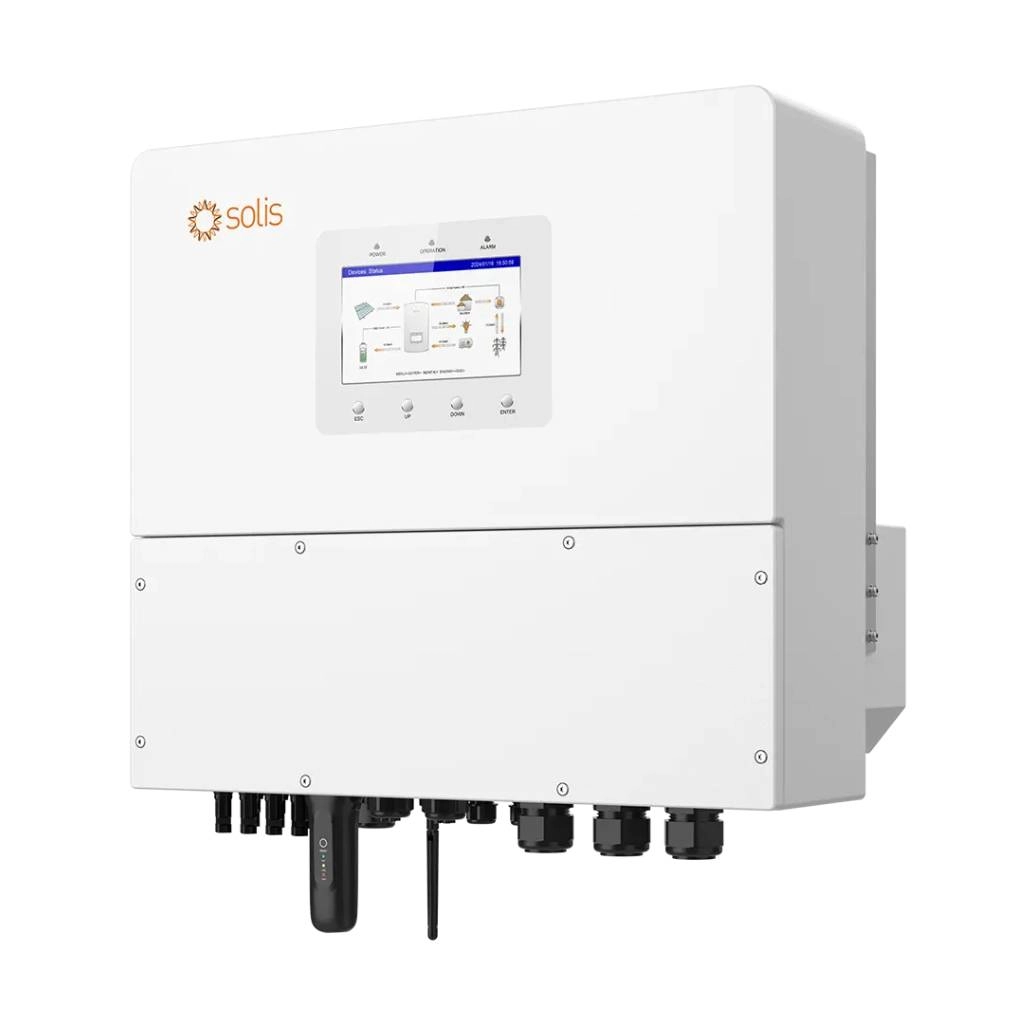

20kW Hybrid Solar Inverter Three Phase High Voltage 10yrs Warranty

Product information

Wattage:

Max. usable PV input power: 32kW;
Max. charge / discharge power: 20kW;
Rated output power AC: 20kW

Current:

Max. input current: 20A / 20A / 20A / 20A
Max. short circuit current: 30A / 30A / 30A / 30A;
Max. output current: 30.4A / 28.9A;
Rated grid output current: 30.4A / 28.9A;

Voltage:

Max. PV Input DC Voltage: 1000V;
MPPT Range: 200~850V;
Rated PV Input DC Voltage: 600V;
Start-up Voltage: 160V;

Frequency: Rated grid frequency: 50 Hz

Power Factor: >0.99 (0.8 leading – 0.8 lagging)

IP Rating: IP66

Working conditions: -25~+60℃

Size: 599 x 546 x 243 mm

Order code: 12227

Product code: S6-EH3P20K-H

Item Weight: 31.7 kg

Items per pack: 1

Release Date: 31.10.2024

Brand: Solis

Warranty: 10 years
