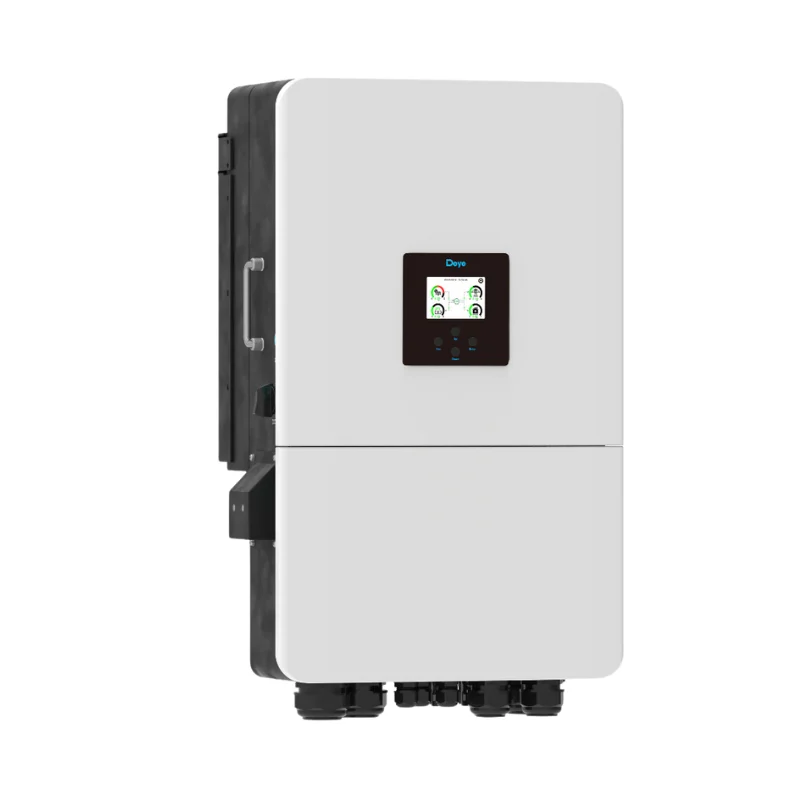

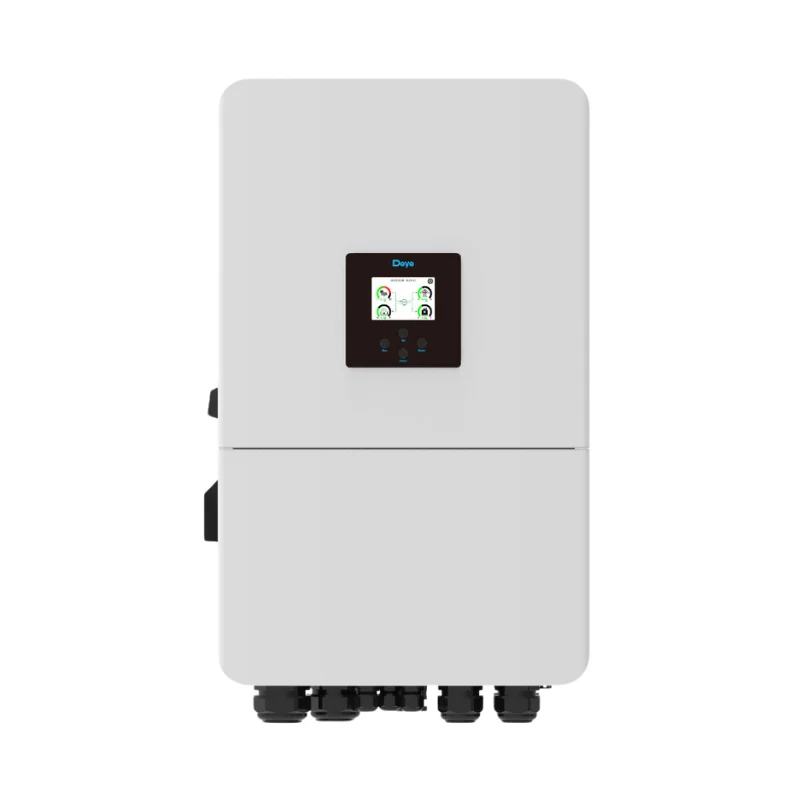

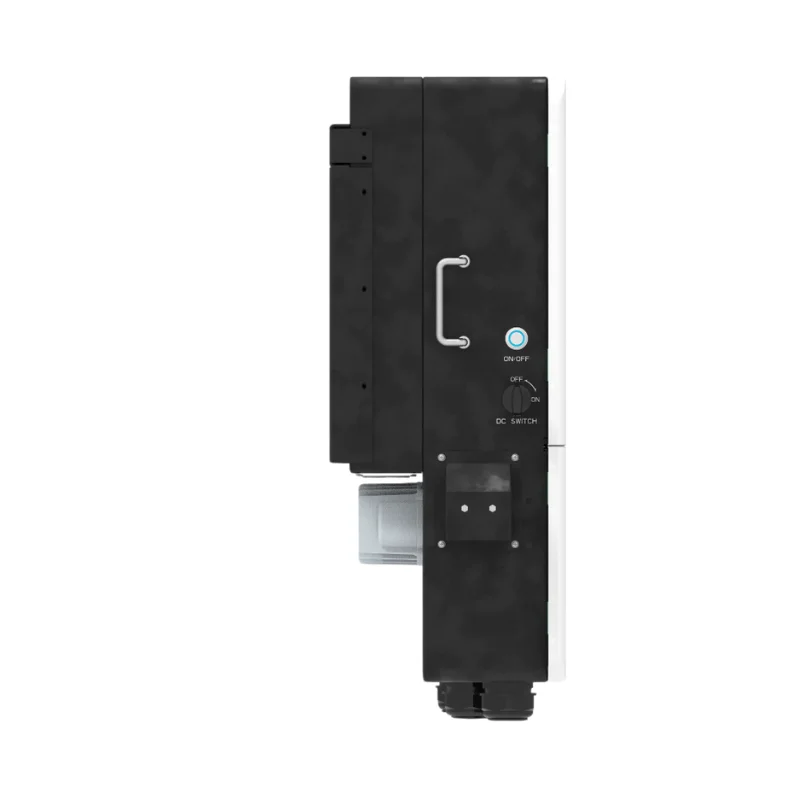

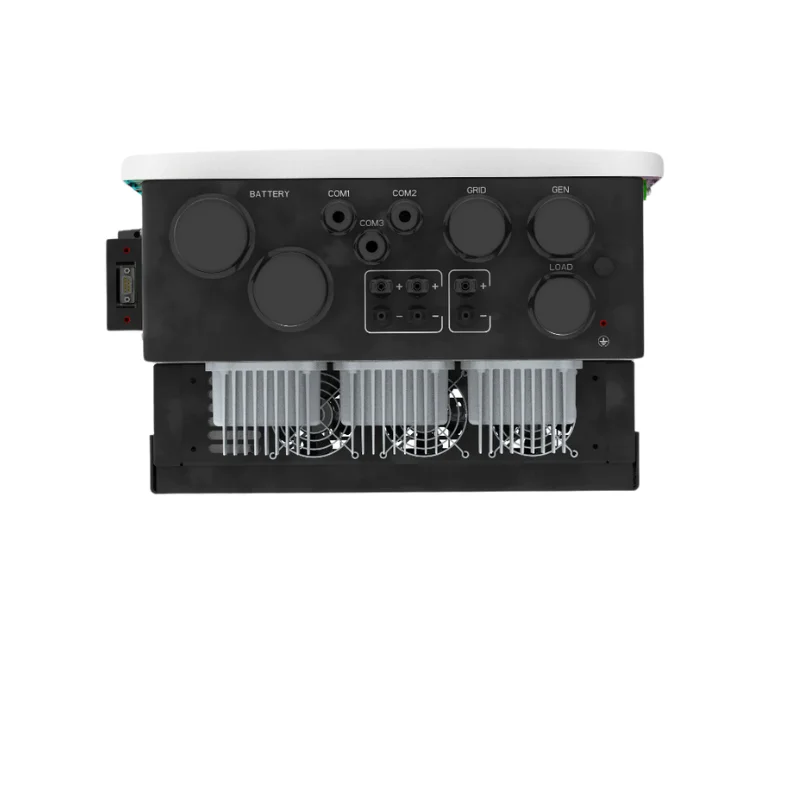

20kW Hybrid Solar Inverter Three Phase Low Voltage

Product information

Wattage:

Max. Input Power: 30000W;
Rated AC Input/Output Active Power: 20000W;
Max. AC Input/Output Apparent Power (VA) 22000;

Current:

Max. Operating PV Input Current (A): 36+20 ;
Max. Input Short-Circuit Current (A): 54+30;
Rated AC Input/Output Current (A): 30.4/29;
Max. AC Input/Output Current (A): 30.4/29
Max. Continuous AC Passthrough: 70A;

Voltage:

Rated PV Input Voltage: 550V;
MPPT Range: 160-650V;
Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un;
Start-up Voltage: 160V;

Frequency: Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Power Factor: 0.8 leading to 0.8 lagging

IP Rating: IP65

Working conditions: -40~60℃ BJ2, >45℃ Derating

Size: 456×750×268.5 mm (Excluding Connectors and Brackets)

Order code: 12185

Product code: SUN-20K-SG05LP3-EU-SM2

Item Weight: 50.6 kg

Items per box: 1

Release Date: 29.08.2024

Brand: Deye

Warranty: 10 years
