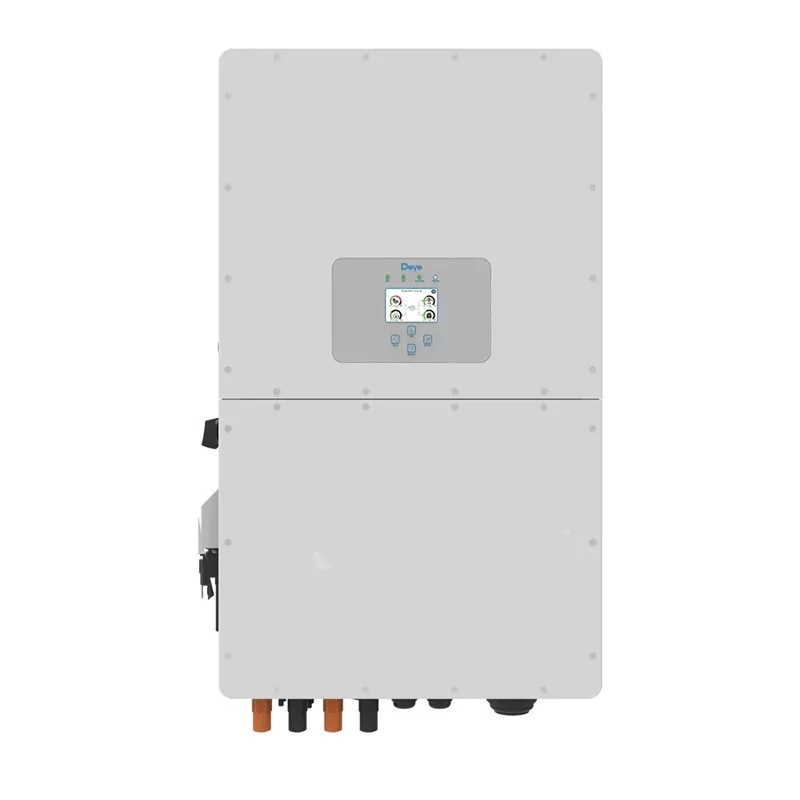

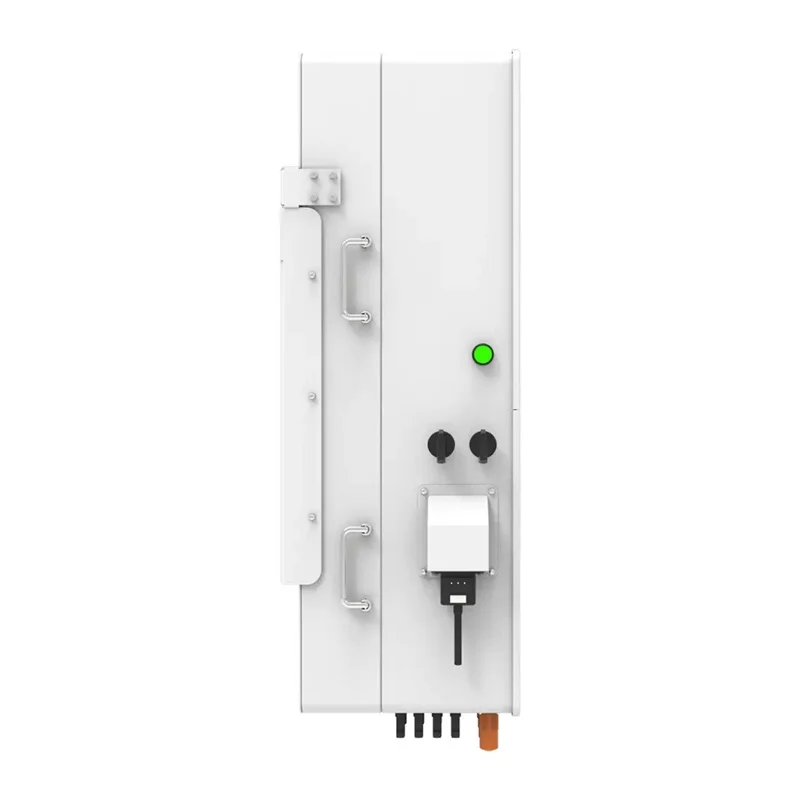

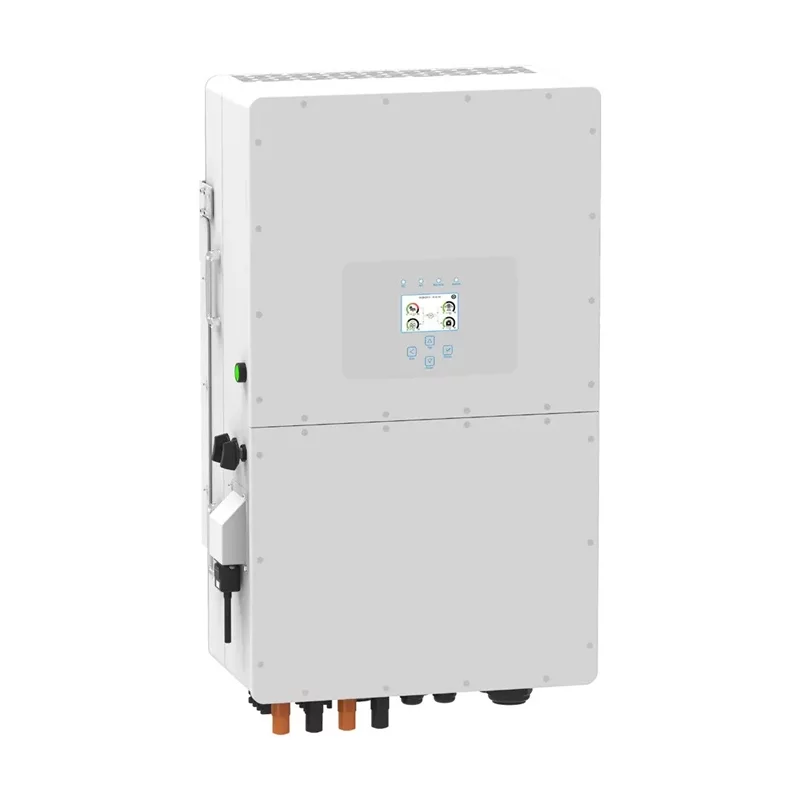

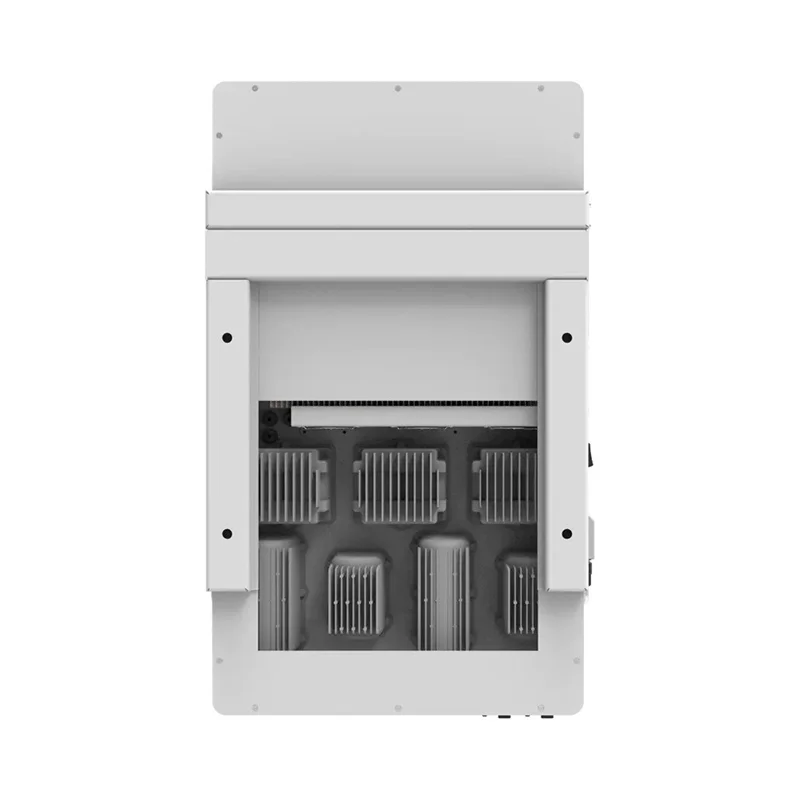

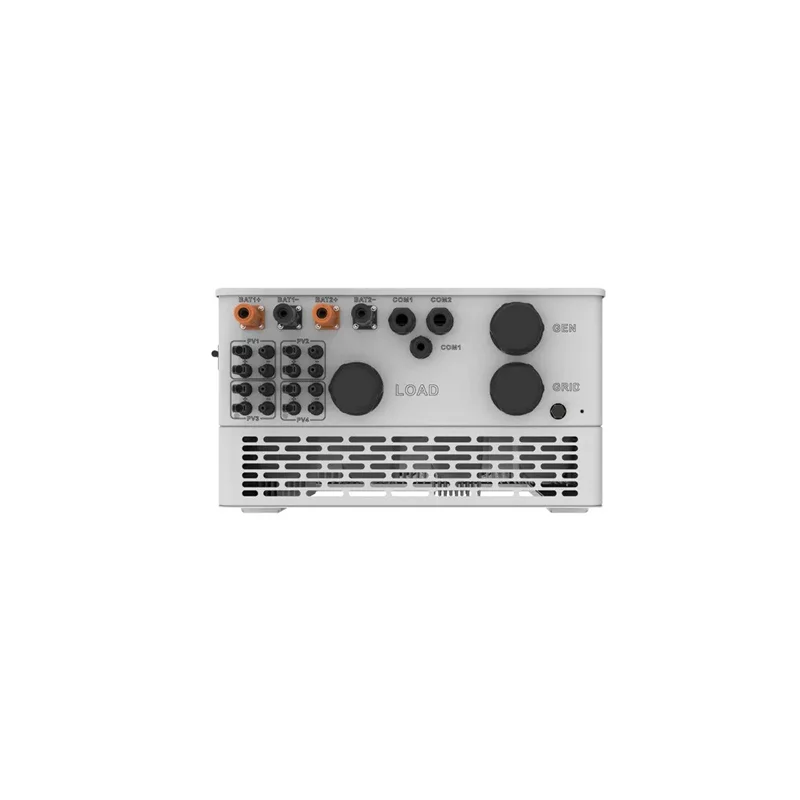

30kW Hybrid Solar Inverter Three Phase High Voltage

Product information

Wattage:

Max. PV Input Power: 39000W;
Rated AC Input/Output Active Power (W): 30000W;
Peak Power (off-grid) (W) 1.5 times of rated power, 10s;

Current:

Max. Operating PV Input Current (A) 36+36+36
Max. Input Short-Circuit Current (A) 55+55+55;
Rated AC Input/Output Current (A) 45.5/43.5;
Max. AC Input/Output Current (A) 50/47.9;

Voltage:

Max. PV Input Voltage: 1000V;
MPPT Range: 150~850V;
Rated PV Input Voltage: 600V;
Start-up Voltage: 180V;

Frequency: Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Power factor: 0.8 leading to 0.8 lagging

IP Rating: IP65

Working conditions: -40~60℃ BJ2, >45℃ Derating

Size: 527 x 894 x 294 mm

Order code: 11998

Product code: SUN-30K-SG01HP3-EU-BM3

Item Weight: 102 kg

Item Volume: 0.1925

Items per box: 1

Items per pack: 1

Release Date: 20.06.2024

Brand: Deye

Warranty:

10 Years
Warranty Period Depends the Final Installation Site of Inverter;
More Info Please Refer to Warranty Policy
