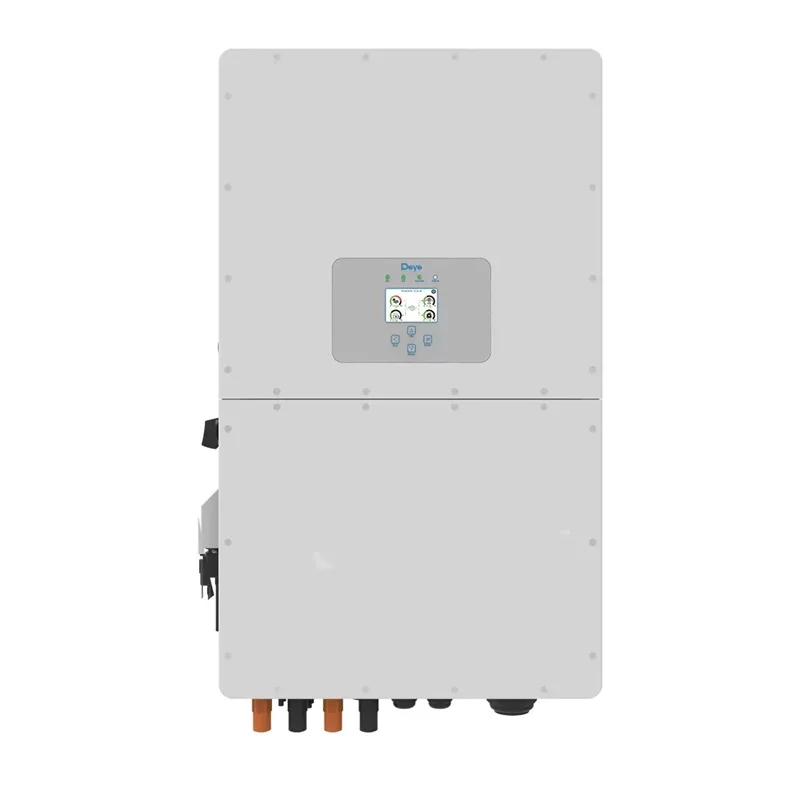

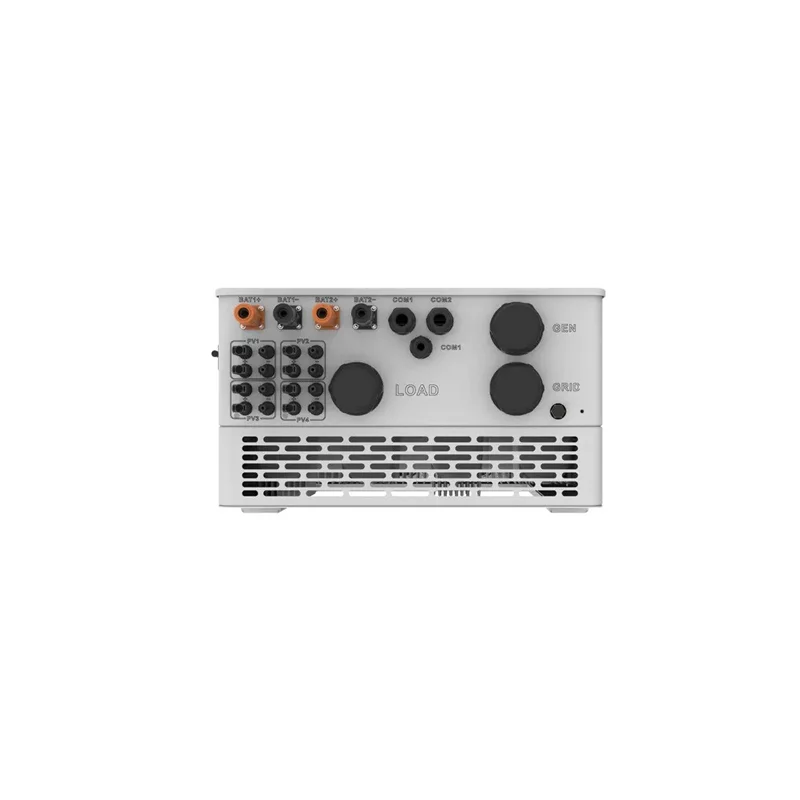

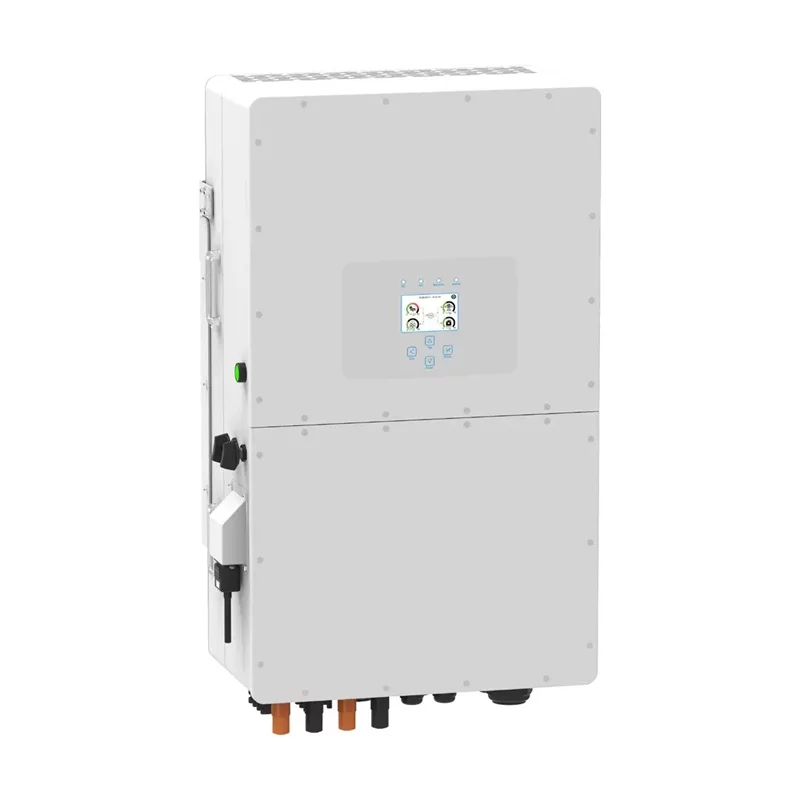

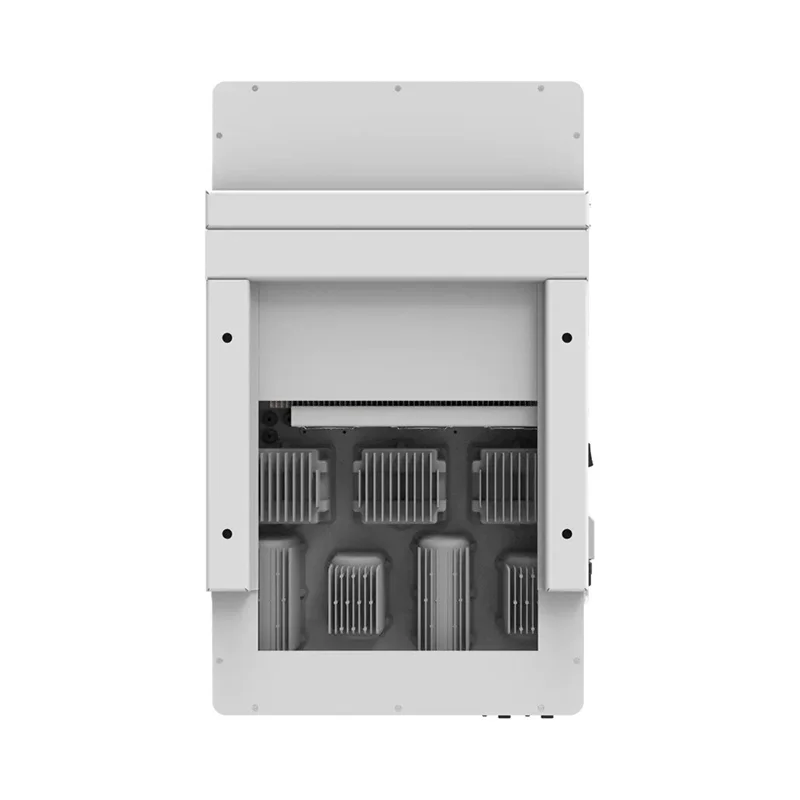

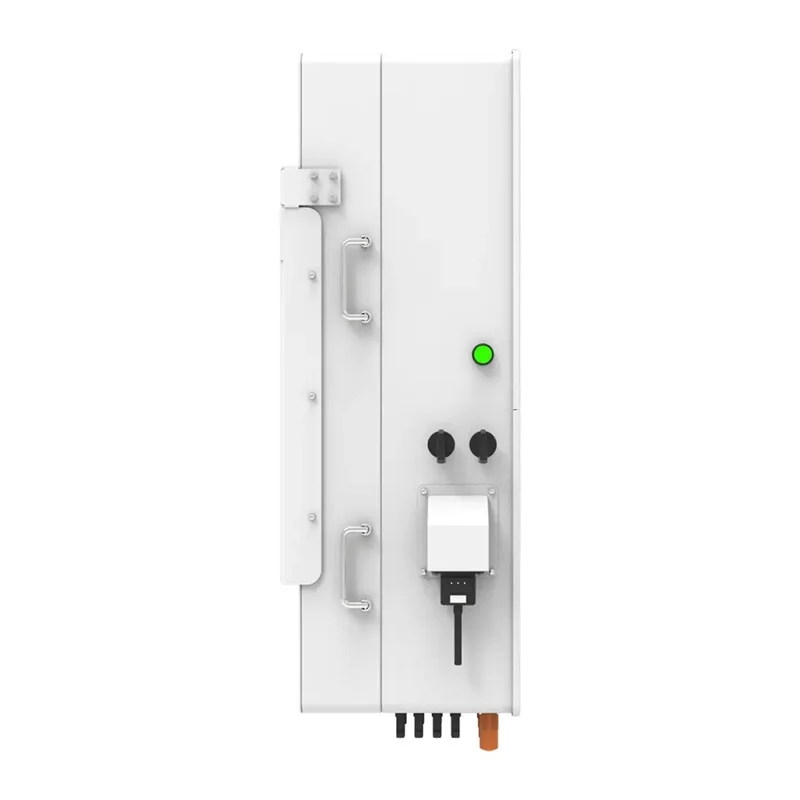

40kW Hybrid Solar Inverter Three Phase High Voltage

1
2
3
4
5
Product information

Wattage:

  • Max. Input Power: 52000W;
  • Rated AC Output Active Power: 40000W;
  • Max. AC Output Apparent Power (VA) 44000;

Current:

  • Max. Charging Current(A): 50+50;
  • Max. Discharging Current (A): 50+50
  • PV Input Current (A): 36+36+36+36;

Voltage:

  • Max. DC Input Voltage (V): 1000;
  • MPPT Range: 150-850;
  • Full Load DC Voltage Range (V) 360-850;
  • Start-up Voltage: 180V;

Frequency: 50/60Hz

Power Factor: 0.8 leading to 0.8 lagging

Order code: 12300

Product code: SUN-40K-SG01HP3-EU-BM4

Release Date: 07.01.2025

Brand: Deye

Warranty: 10 years
