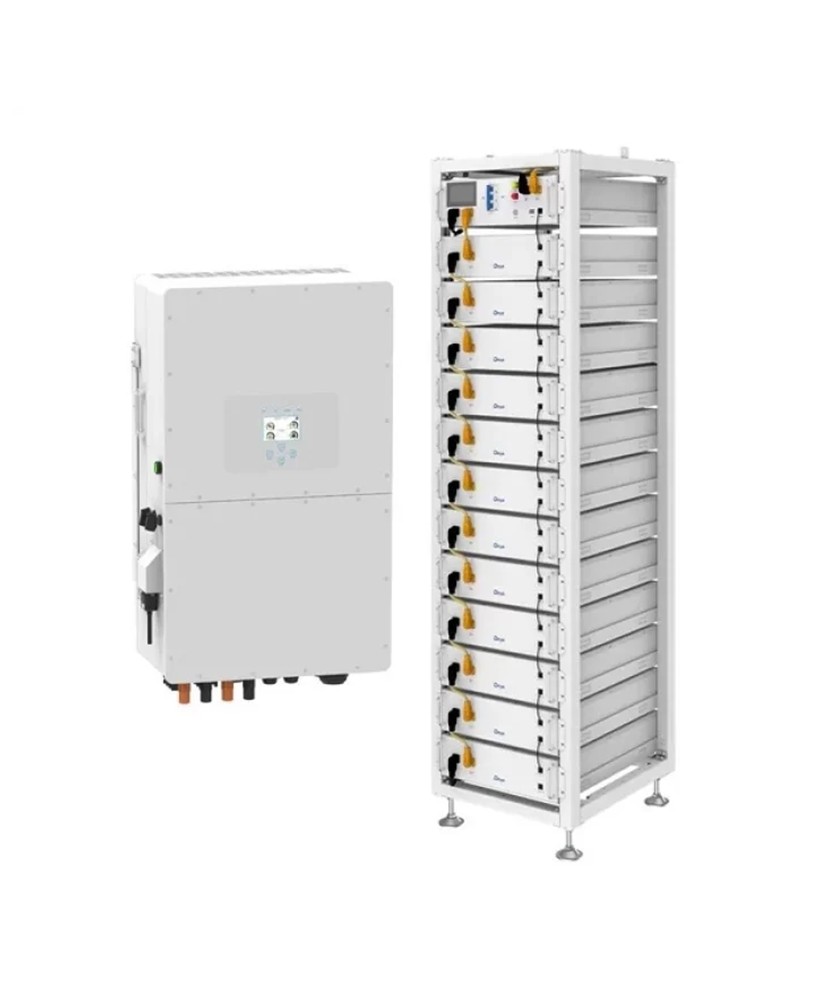

50kW Hybrid Inverter and 60kWh Battery IP20 Indoor

22022
Product information

Current:

  • Inverter:
  • PV Input Current: 36+36+36+36A;
  • Max. PV ISC (A): 55+55+55+55;

Wattage:

  • Battery System energy: 61.44kWh;
  • Each Battery: 5.12kWh;
  • Max. Input Power Inverter: 65000W;

Voltage:

  • Inverter Rated Input Voltage: 600V;
  • Inverter Full-load DC Voltage Range: 450-850V;
  • Battery module Working Voltage: 538 ~ 691V;
Frequency: 50/60Hz

IP Rating: IP20

Working conditions:

  • Inverter: ~-40~60( >45℃ derating);
  • Battery: Charge 0～55℃ / Discharge -20℃～55℃;

Size:

  • 589x590x2240 Battery Module and Rack;
  • 440x570x133 Each Battery;
  • 527x894x294 Inverter;

Order code: 22022

Item Weight:

  • The total weight (12 battery modules, 1 rack) 628 kg;
  • Weight of each battery module/battery rack 44 kg and 85 kg;
  • 100 kg Inverter;
Certification: Battery module CE/IEC62619/ UN38.3

Release Date: 18.12.2023

Brand: Deye

Warranty: 10 years
