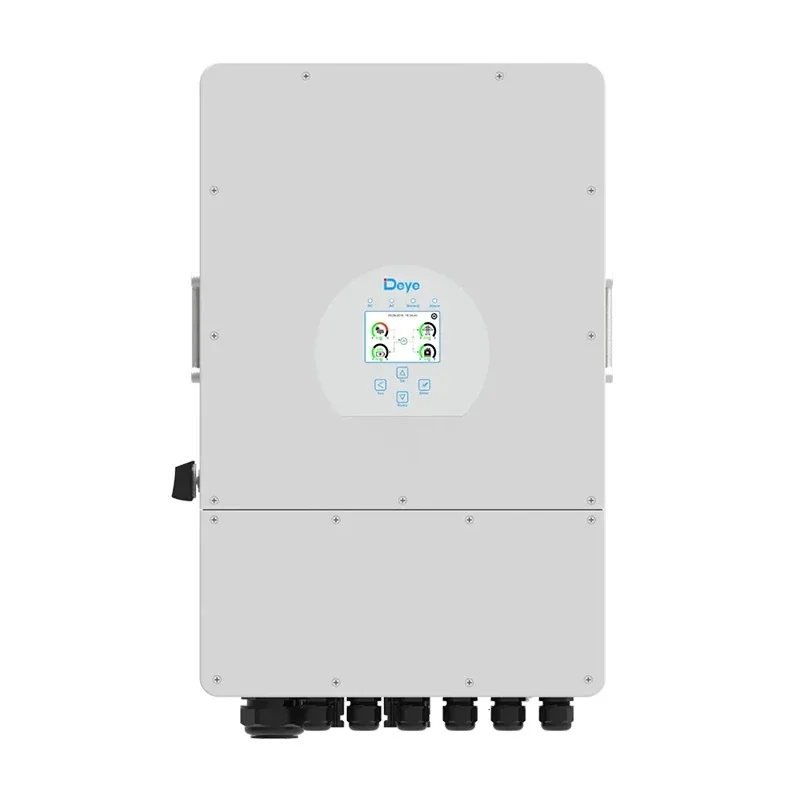

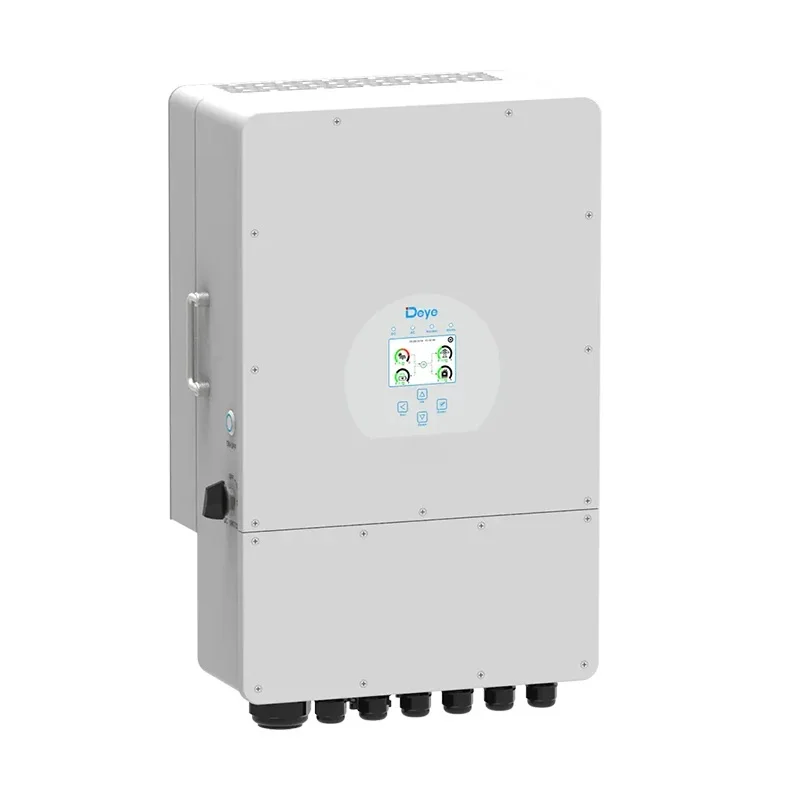

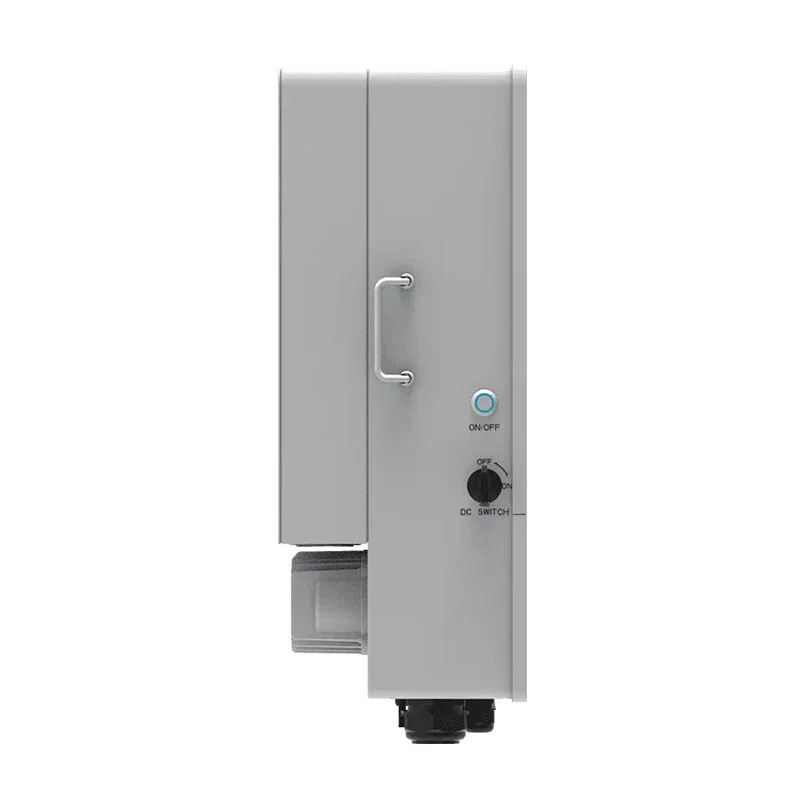

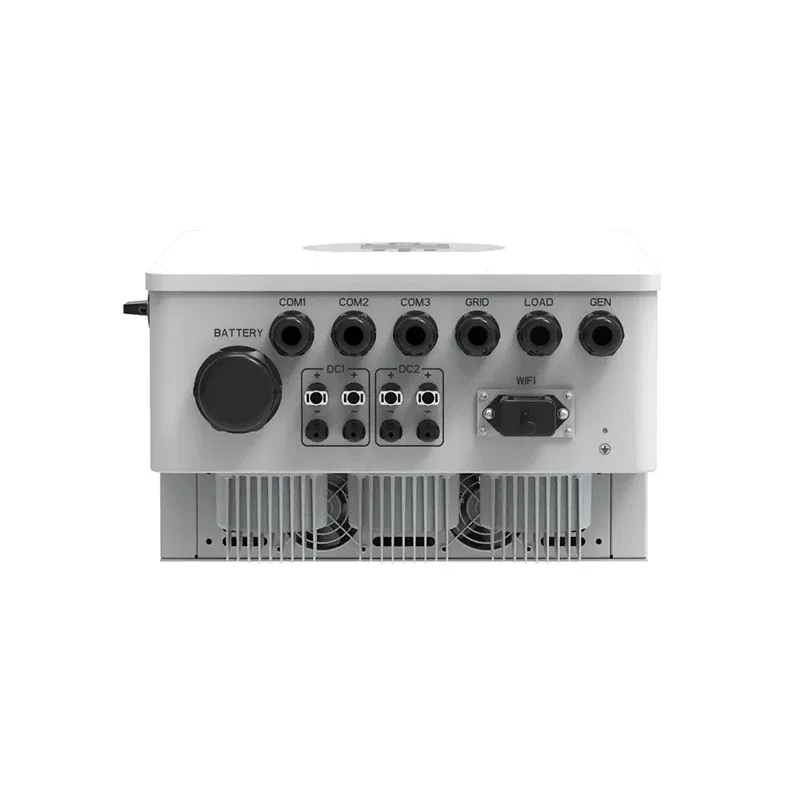

5kW On/Off Grid Hybrid Solar Inverter Three Phase 380VAC

Product information

Wattage:

  • Max. Input Power: 6500W;
  • Rated AC Output Active Power: 5000W;
  • Max. AC Output Active Power: 5500W;

Current:

  •  PV Input Current: 13A+13A ;
  • AC Output Rated Current: 7.6/7.2A;
  • Max. AC Output Current: 8.4 /8A;
  • Max. Three-phase Unbalanced Output Current: 11.4/10.9A;
  • Max Output short circuit current: 75A;
  • Max. Continuous AC Passthrough: 45A;

Voltage:

  •  Rated PV Input Voltage: 550 (160-800);
  • MPPT Range: 200-650V;
  • Full Load DC Voltage Range: 350-650V;
  • Start-up Voltage: 160V;

Frequency: Output Frequency 50/60Hz

Power Factor: 0.8 leading to 0.8 lagging

IP Rating: IP65

Working conditions: -40~60℃ BJ2, >45℃ Derating

Size:

  • Cabinet Size (WxHxD mm):
  • 422 x 702 x 281
  • Excluding Connectors and Brackets;

Order code: 11743

Product code: SUN-5K-SG04LP3-EU

Item Weight: 33.6 kg

Items per box: 1

Release Date: 19.05.2023

Brand: Deye

Warranty: 10 years
