Product information

Wattage:

• Max. Input Power: 10400W;
• Rated AC Output and UPS Power: 8000W;
• Max. AC Output Power: 8800W;

Current:

•  PV Input Current: 13A+13A ;
• AC Output Rated Current: 12.1/11.6A;
• Max. AC Current: 13.4/12.8A;
• Max. PV Isc(A): 17A+17A;

Voltage:

•  PV Input Voltage: 550V (160V~800V);
• MPPT Range: 200~650V;
• Start-up Voltage: 160V;

Frequency: Output Frequency 50/60Hz

IP Rating: IP65

Working conditions: -40~60℃ BJ2, >45℃ Derating

Size: 422W×702H×281D (Excluding connectors and brackets)

Order code: 11835

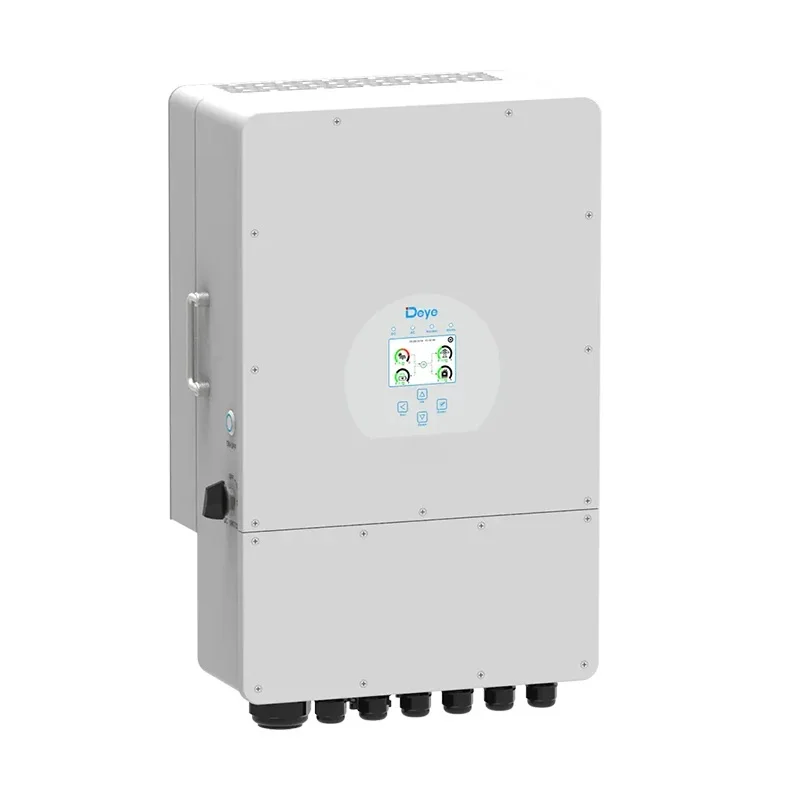

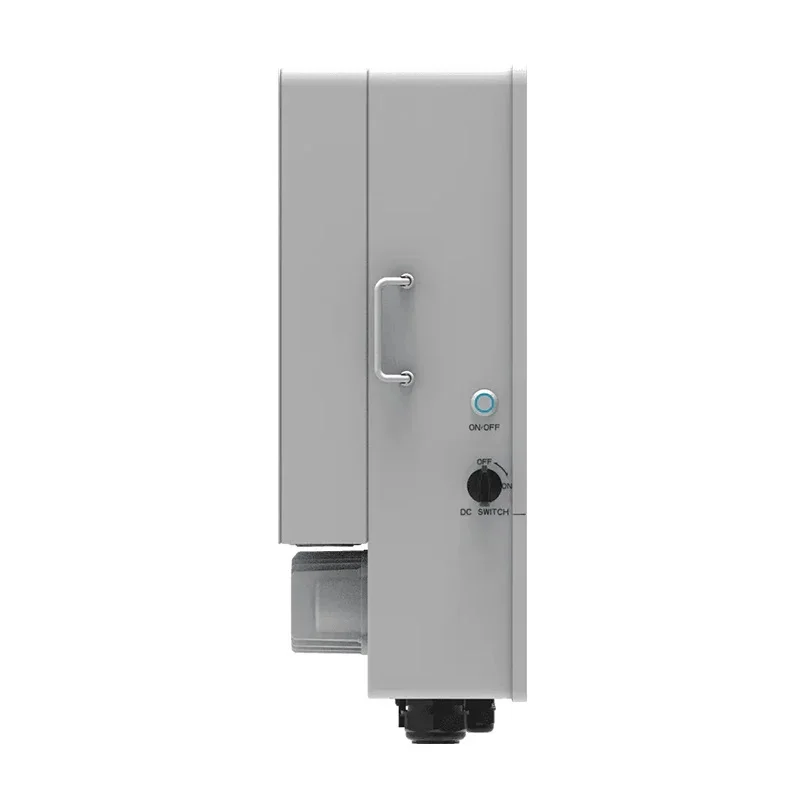

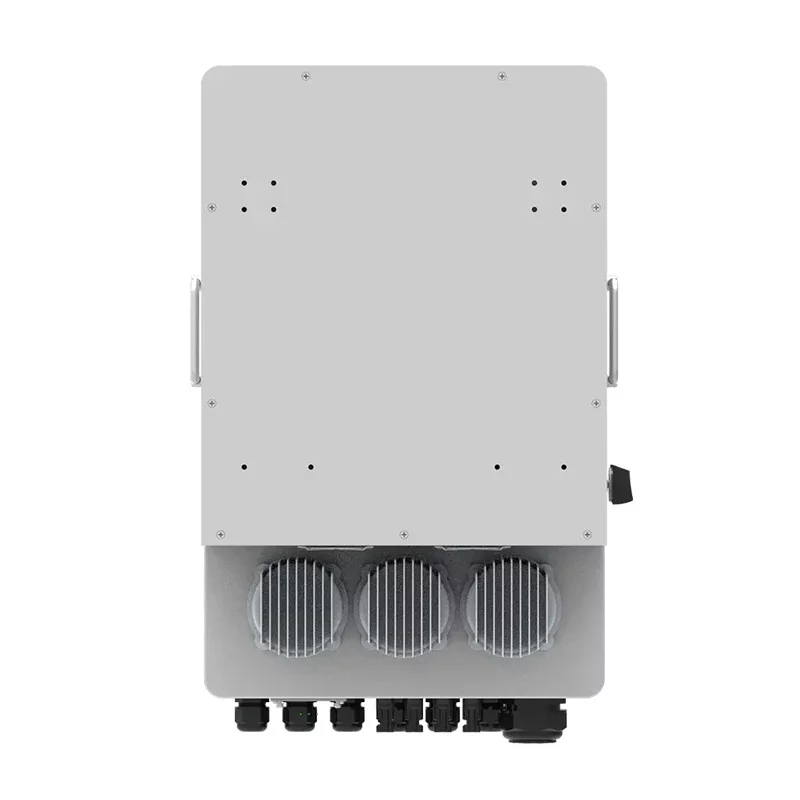

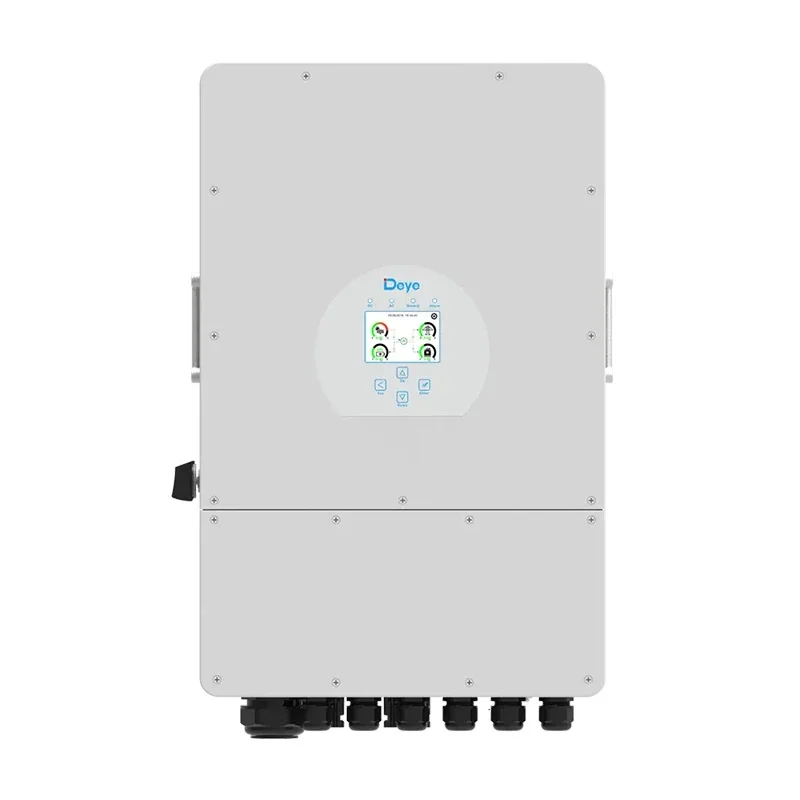

Product code: SUN-8K-SG04LP3-EU

Item Weight: 47.2 kg

Release Date: 29.09.2022

Brand: Deye

Warranty: 10 years
