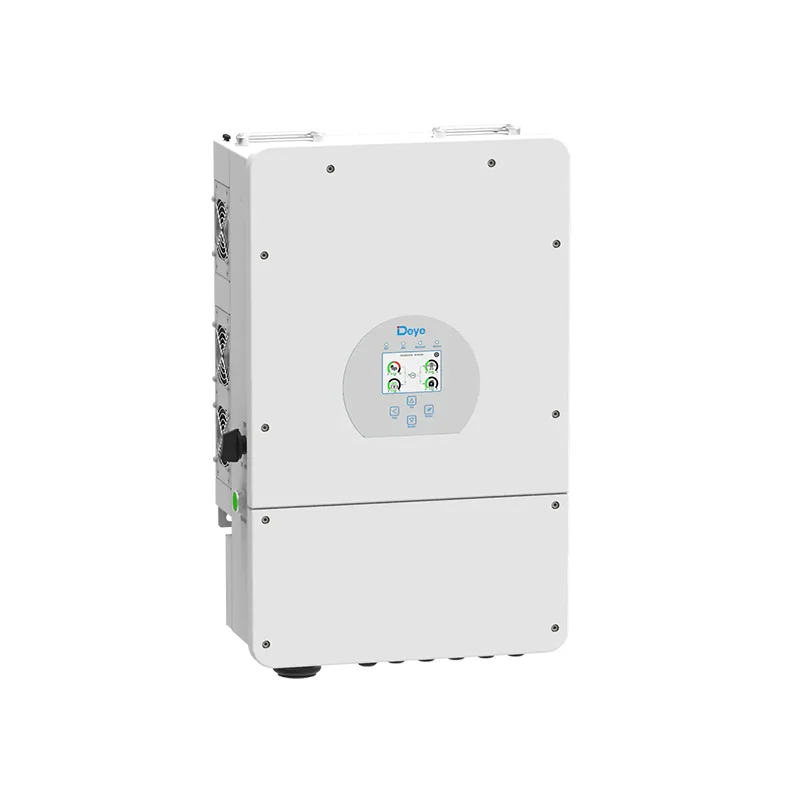

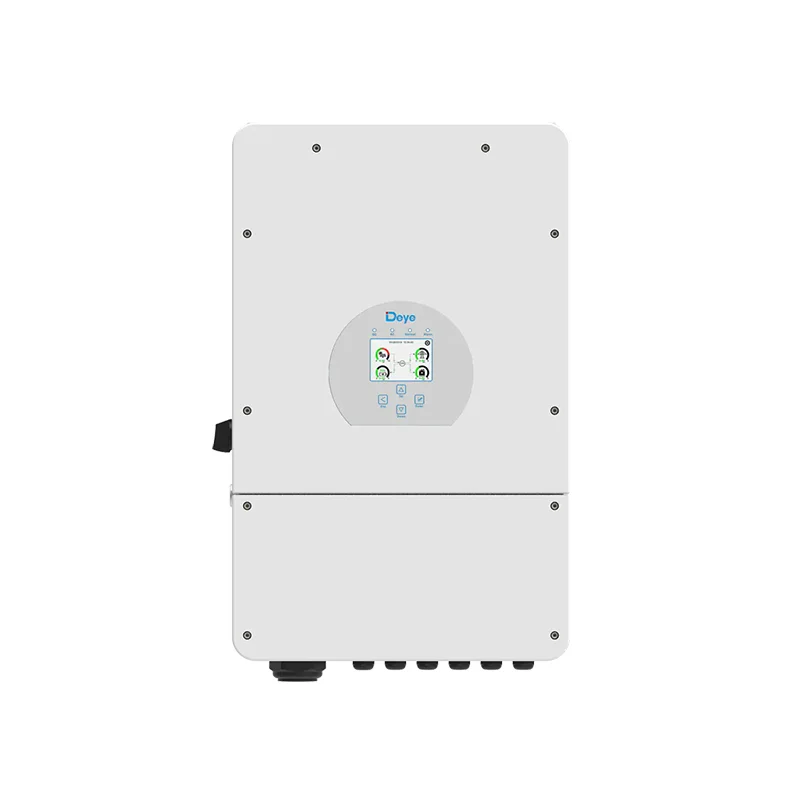

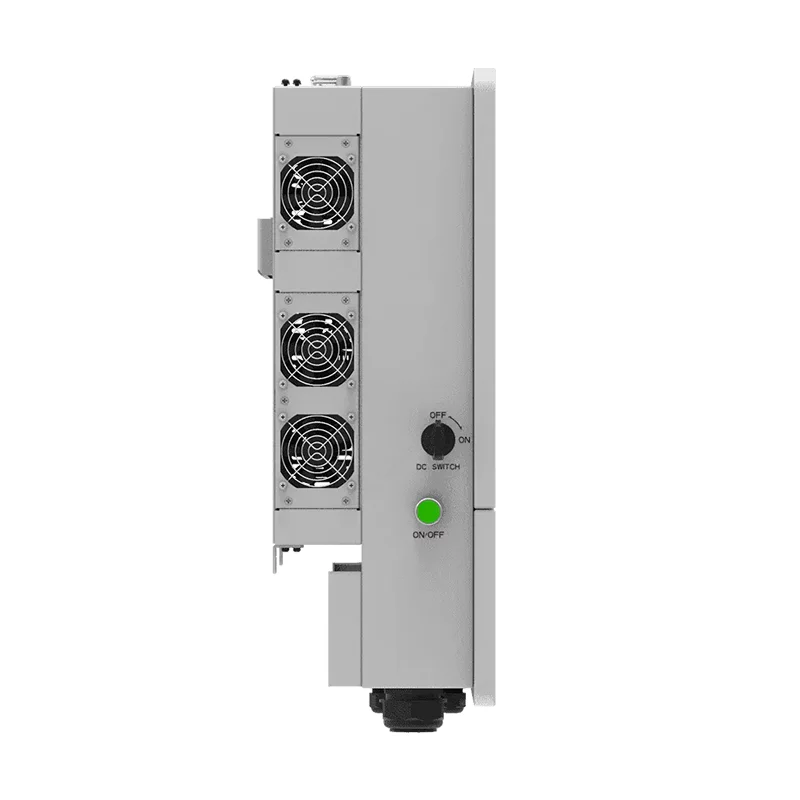

8kW On/Off Grid Hybrid Solar Inverter Single Phase 230VAC

“Illuminating the Future with Innovation and Efficiency”

8kW On/Off Grid Hybrid Solar Inverter Single Phase 230VAC

Product information

Wattage:

Max. Input Power: 10400W;
Rated Output Power: 8000W;
Max. Output Power: 8800W;

Current:

PV Input Current: 26A+26A ;
AC Output Rated Current: 33.3/38.5A;
Max. AC Output Current: 36.7/42.3A;

Voltage:

Start Voltage: 125V
MPPT Voltage Range: 150-425V;
Full Load DC Voltage Range: 200-425V;
Rated Input Voltage: 370 (125-500);

Frequency: Output Frequency 50/60Hz

Power Factor: 0.8 leading to 0.8 lagging

IP Rating: IP65

Working conditions: -40~60℃ BJ2, >45℃ Derating

Size: 420 × 670 × 233 mm

Order code: 11803

Item Weight: 32 kg

EAN Code: 3800170206496

Release Date: 02.05.2023

Brand: V-TAC

Warranty: 10 years
